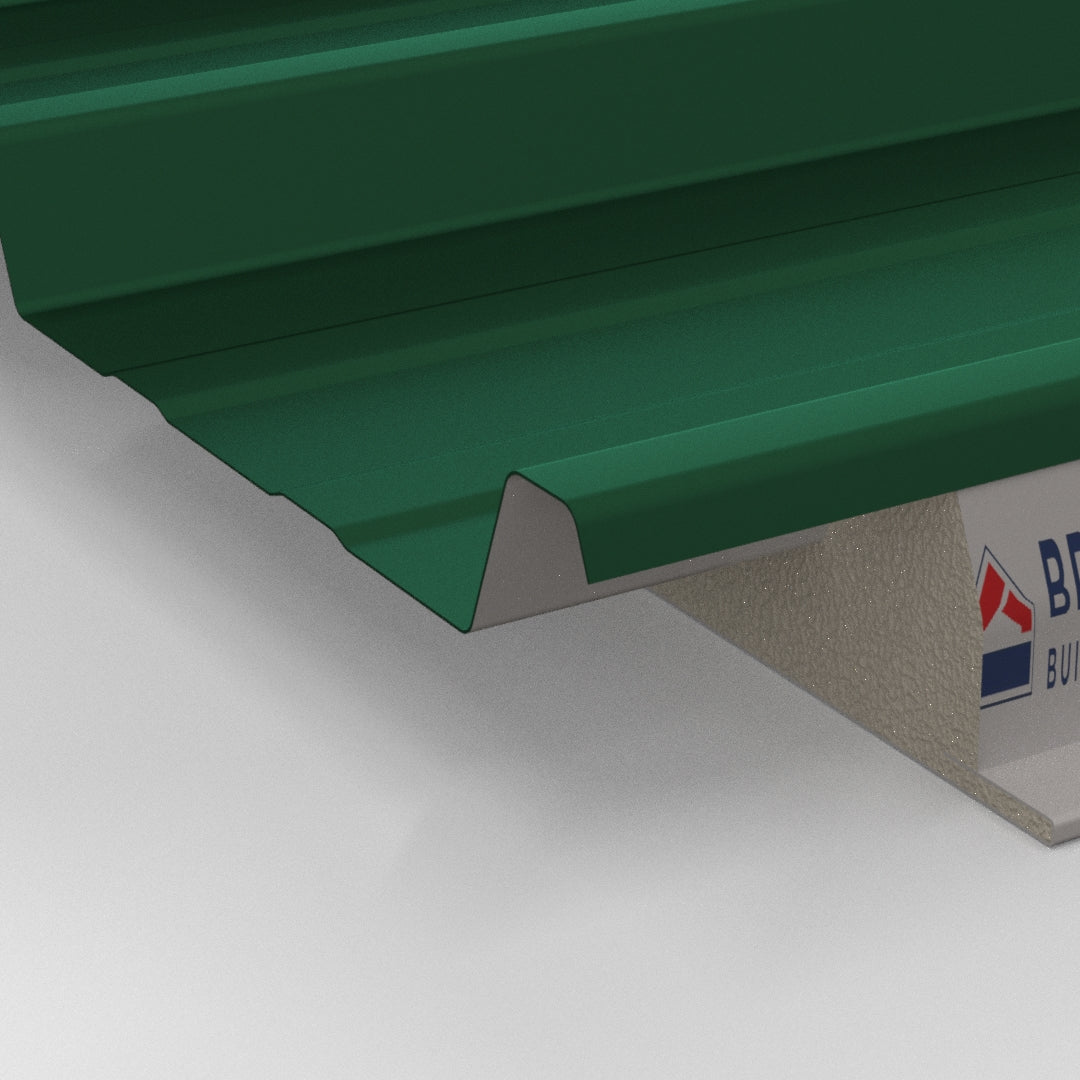

Insulated Roof Panel PIR 30mm Dark/Moss Green
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
All deliveries are handled by our in-house transport team. We have a fleet of over 15+ different vans, rigids and articulated lorries!
Our deliveries are curb-side. Standard nationwide delivery is available on all orders in Great Britain and Scotland, but if you want your order faster, then we have different options available on the checkout.
Description
Description
Insulated Roof Panel PIR 30mm
The Briarwood Insulated Roof Panel is designed for use on inclined/apex/pitched roofs or as cladding on walls, whether they are positioned horizontally or vetically. It is ideal for exterior insulated cladding across various buildings, including industrial, commercial, and public facilities (as well as being used on agricultural structures). With a sturdy PIR insulated core flanked by metal sheets on both sides, this Insulated Roof Panel offers excellent thermal insulation while enabling significant span widths. It requires a minimum installation angle of 4 degrees, accounting for any potential sagging.
Specifications of Insulated Roof Panel PIR
Dimensions
Length: Minimum. 3000mm / Maximum. 7000mm
Stocked Length: 3000mm, 4000mm, 5000mm, 6000mm, 7000mm.
Width: 1000mm
Thickness and weights
30mm: 7.42 kg/m²
Insulation
Core: Polyisocyanurate (PIR)
Density: 40 ± 5 kg/m³
Fire classification: Bs2d0 according to EN 13501-1 (same as competing options on the market)
Insulation table
| Insulation thickness | U (W/m²K) | Rw (dB) |
Thermal Resistance R (m²K/W) |
| 30mm | 0.71 | 23.0 |
1.41 |
Characteristics Table
|
Density with film |
40 Kg/m³ |
|
Density without film |
36-38 Kg/m³ |
|
Thermal conductivity |
λ = 0.023 W/mK |
|
Adhesion value |
1 Kg/cm² |
|
Compressive strength |
≥ 1.2 Mpa |
|
Traction resistance |
≥ 0.10 Mpa |
|
Cutting resistance |
≥ 0.10 Mpa |
|
Water absorption |
≥ 95% |
|
Operating temperature |
from -40°C to +80°C |
Loading tables
The table below shows the single span support centre distances for the Insulated Roof Panel PIR in 30mm thickness.
| Thickness |
Weight (kg) |
1.5m |
2m |
2.5m |
3m |
| 30mm | 7.42 | 250 | 195 | 105 | 70 |
Reference standards
Fire classifications
- BS EN 13501-1: Fire classification of construction products and building elements
- EN ISO I 1925-2: Reaction to fire rests for building products
- BS EN 13823: Reaction to fire tests for building building products excluding floorings exposed to the thermal attack by a single burning item
Tolerances and calculations
- BS EN 14509 -Factory-made double skin metal faced insulating sandwich panels
Specifications
Specifications
-
Width
-
Cover Width
-
Pitch
-
Profile Height
-
Material
-
Thickness
-
Fire Rating Class
-
Minimum Roof Pitch
